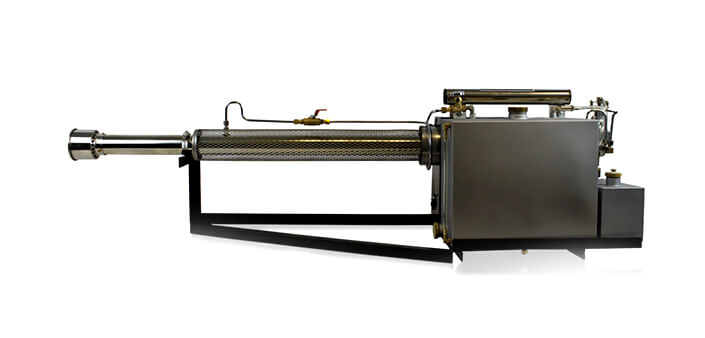

Designed to be fitted to the back of a motorbike or quad-bike, the H300 is the ideal fogger for fast dispersion of disinfectants or insecticides in towns and farms. Features include 13.5 litre (3.6 gal.) tank, automatic start and a powerful outflow of 52 LPH (13.7 GPH). It can also be custom built to fit customer’s specific requirements.
Type: Quad Mounted
Application: Oil-based chemicals
Maximum Flow Rate of oil based solution: 60 lph
Average flow rate with water (SF Models Only): 45 lph
Solution Tank Capacity: 15L
Solution Tank Pressure: 0.15 kgf / cm2 (2.13 PSI, 0.147 bar)
Droplet size: 5-30 microns
Motor: Pulse Jet Engine
Fuel Tank Capacity: 2.4 L (0.64 Gal.)
Fuel Consumption: 1.8 lph
Fuel Type: Unleaded Petrol
Performance of combustion chamber¹: 21 kW / 28.2 hp
Spray distance (horizontal)²: 25-30 metres (82 - 98.4 ft.)
Power supply: 6V Rechargable Battery
Dimension (inch): Build to fit Customer’s requirements
Net Weight (lb): 33
