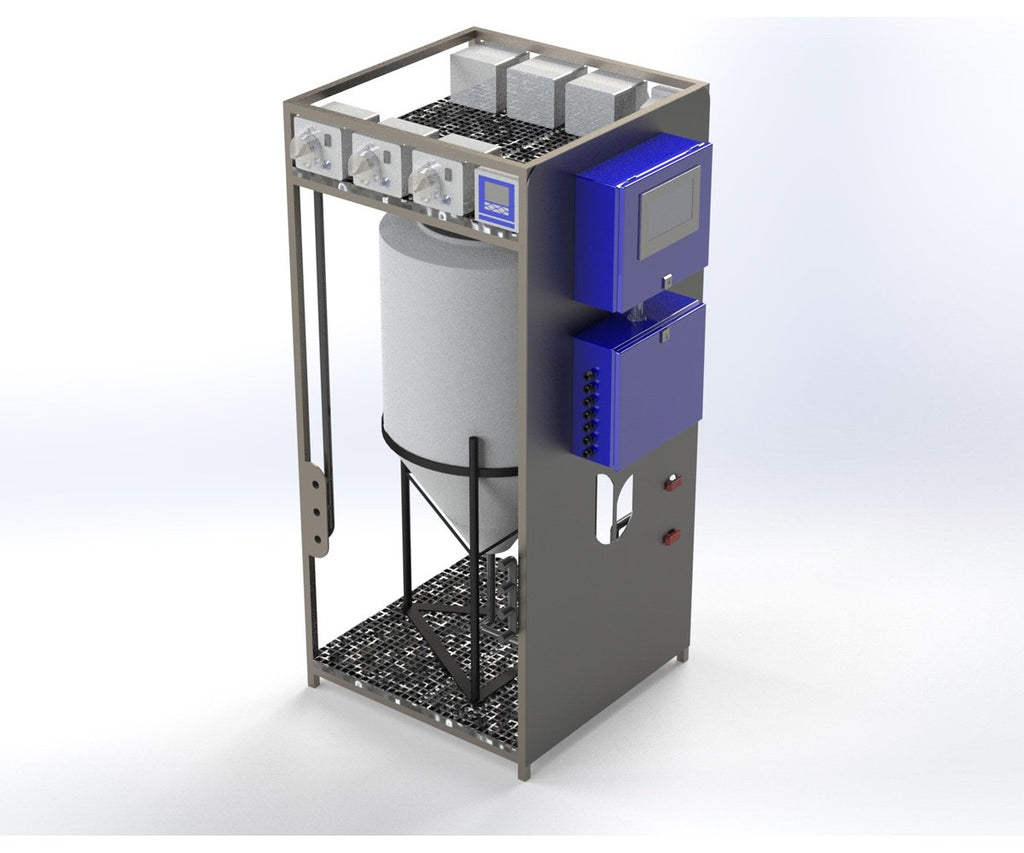

Total Grow Control Eden C Environmental Control System
Meet Eden C, the complete control system for smaller grows. It is small yet precise, inexpensive and intelligent. Not only is it a nutrient delivery system, but it also provides environmental control without the need of any addition controllers. Eden C’s proprietary control system is sleek and simple as it does not require complicated programming. Simply plug the system in and use the intuitive touchscreen interface to create your nutrient recipe and let Eden C begin controlling nutrient delivery to your plants. Eden C will also precisely control room HVAC, dehumidifiers, CO2 injection, and lighting for up to two grow spaces with ease. Rest easy knowing that you can monitor Eden C from your phone, tablet, or computer while you’re away. Eden C installs with ease fitting through standard single doors, plugs into a nearby 120V outlet, pre wired environmental sensors, and has standard 1” NPT plumbing connections.
Technical Specs
- Batch system
- 60 gallon conical bottom tank
- Irrigation delivery to 4 nutrient zones
- Environmental control for 1-2 rooms
- 9” touchscreen user interface
- Ability to for recipes with up to 4 nutrients
- pH adjustment with acid and caustic pumps
- ½ HP irrigation delivery pump
- User notification for environmental and irrigation alerts
- Mixing loop with EC and pH verification
- 2 flow meters- incoming and outgoing
- 40 PSIG maximum supply pressure
- Plug and play
- Nutrient delivery flow up to 20 GPM
- Nutrient injection rates of 4.04 GPH
- Dimensions: 32” W x 32” D x 60” H
- Weight: 428 lbs
Additional Features:
- Monitors water temperature, EC and pH
- Feed pressure - line burst detection
- (2) 100’ pre-wired environmental sensors monitoring temperature, CO2, RH, and light
Requirements:
- Water: 15-20 GM
- Electric: 20 amp, 120 VAC
- 1 Phase
- Cat 5 (Ethernet Cable)
