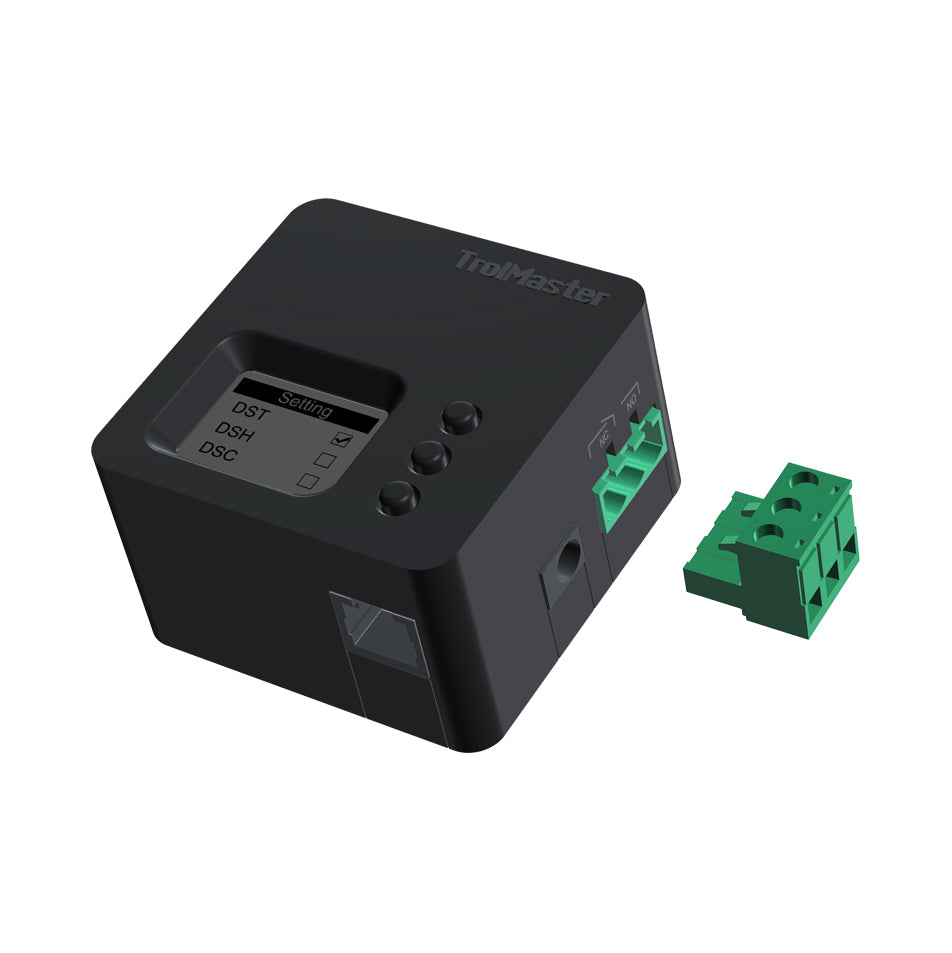

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. *
The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:
Lighting contactors
Light Deprivation curtains
Pump contactors
Temperature devices
Humidity devices
CO2 devices
* Consult Trolmaster for questions concerning your particular device.
Features:
LCD Display, Easy Operation
Seamless Connection with Hydro-X
Multiple purposes assigment
Plug & Play
Included In Box:
1 x Dry Contact Station DSD-1
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
Technical Specifications:
Input Voltage: 100~240VAC, 50/60Hz
Output Current: 10A
Output Voltage: 100~240VAC, 50/60Hz
Working Environment: Temperature 32-122°F, Humidity=90%
Packaging Dimensions: 85mm x 80mm x 90mm
