TrolMaster

TrolMaster - Aqua-X Controller with Water Detector set Free SmartPhone App

SKU: NFS-1
  • Sale
  • Regular price $315.40
Shipping calculated at checkout.


The Aqua-X system is a professional-grade irrigation control system. It is a fully customizable modular designed system. Installation is simple and the system is easy to expand upon. The Aqua-X is designed to control up to 30 separate irrigation zones (24vac solenoid valves or 120vac pumps),  The Aqua-x monitors pH / EC and water temp as well as to monitor actual growing medium moisture levels by using up to (8) Water Content Sensors connected to a single Aqua-x controller. The timers can be set-up to be recycling timers, or to operate at specific time of day and durations. With the free TrolMaster App, the user can access all of the settings and alerts on the system from anywhere at anytime.

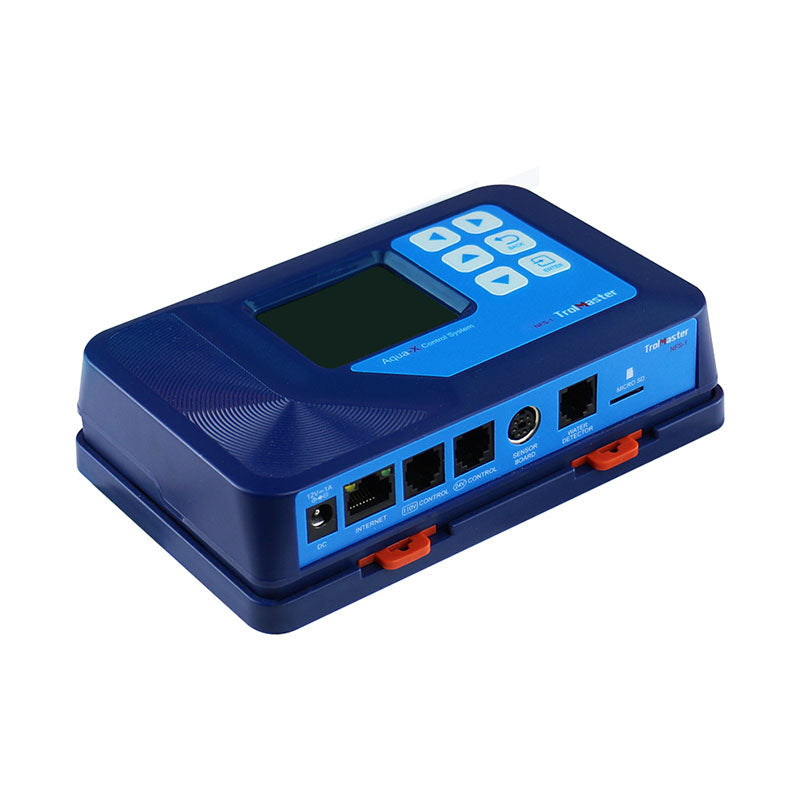

The NFS-1 is the brain of the Aqua-X system. It comes with a water detector WD-1 for leaking alert and watering confirmation.

Features:

LCD Display, Easy Operation

 Managing Multiple Rooms, Multiple Zones Delivery

 Control up to 30 Outputs (24V or 110V)

 pH, EC, Temp Monitoring

 Free Smartphone App with Alerts & Historical Chart

 Data Logging

Included In Box:

1 x Aqua-X Irrigation Controller

  1 x Water Detector

  1 x Touch Spot

  1 x 12V Power Adapter

Technical Specifications:

Input Voltage:                                            100-240 VAC, 50/60Hz

OA6-24 24V Control Board:                          Max. 5pcs per set*

OA6-110 110V Control Board:                       Max. 5pcs per set*

DSP-1 Program Device Station:                     Max. 5pcs per set

Water Detector:                                          Max. 30pcs per set

Water Content Sensor:                                Max.  8pcs per set

AMP-2 Sensor Board:                                   Max. 1pc per set

PCT-1 or PCT-2 EC/Temp Sensor:                  Max. 1pc per set

PPH-1 or PPH-2 pH Sensor:                          Max. 1pc per set

*NOTE:

Combination application is workable for OA6-24, OA6-110 & DSP-1, but the total quantity can not exceed 5pcs (up to 30 outputs).

Manual Link:
https://www.trolmaster.com/PDFHtml/NFS-1.html
